Nylon Pipes And Tubes

Experience the excellence of our Nylon Pipes and Tubes, sourced exclusively from top suppliers and traders with over 19 years of industry experience and an astounding reputation for quality. Find marvelous options in our range, including PA6 Nylon Tube, Polyamide Nylon Tube, Nylon Tube, and PA 12 Black, each crafted to meet the most demanding industrial standards. Serving as a reliable supplier, trader, and distributor, we guarantee top-notch supply ability across All India, ensuring timely access wherever you require. What sets our Nylon Pipes and Tubes apart is their combination of exclusive advantages:: exceptional mechanical strength for lasting durability, astounding chemical resistance to a wide variety of fluids, special lightweight design for easy handling and installation, marvelous flexibility that supports diverse applications, and high impact resistance to endure challenging environments. These features make our collection a preferred choice for industries seeking quality and reliability. Embrace the difference with our Nylon Pipes and Tubes and experience specialty solutions designed to outperform the rest.

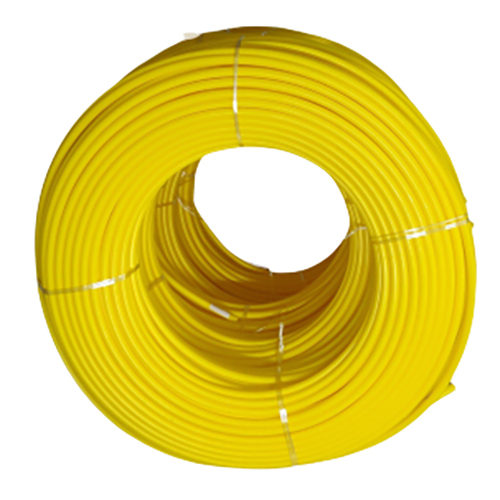

Polyamide Nylon Tube

MOQ : 50 Rolls

Application
other, Automotive, Industrial, Pneumatics, Chemical Conveyance

Bend Radius
5-10 times the outer diameter

Coating Type
Uncoated

Color
Yellow

Connection
Other, Push-fit / Compression

Connection Type
Push-in / Barbed

Diameter
4 mm - 25 mm

Flexibility
High

Length
10 m, 50 m, 100 m (coil lengths)

Material
Other , Polyamide (Nylon)

Material Grade
PA12, PA6

Outer Diameter
4 mm - 25 mm

Product Type
Other, Polyamide Nylon Tube

Rated Pressure
10 bar - 20 bar

Sealing Type
Compression/Push-in Sealing

Section Shape
Other, Circular

Shape
Round

Standard
Other, ASTM D4066 / ISO 1874

Surface Treatment
Other, Smooth Finish

Temperature Range
-40C to +80C

Tensile Strength
75 MPa

Thickness
1 mm - 4 mm (customizable)

Tolerance
0.1 mm

Usage
Fluid Transfer, Pneumatic Systems

Yield Strength
60 MPa

Know more

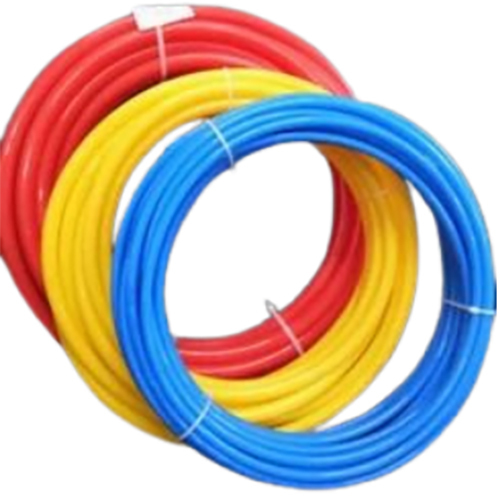

PA6 Nylon Tube

Application
other, Fluid transfer, air line, fuel line

Bend Radius
4x outer diameter

Coating Type
Uncoated

Color
Red, Yellow, Blue

Connection
Other, Push-fit or compression fittings

Connection Type
Push to Connect

Diameter
6 mm - 12 mm

Flexibility
High

Length
100 meters (typical coil)

Material
Other , PA6 (Polyamide 6)

Material Grade
Industrial Grade PA6

Outer Diameter
6 mm, 8 mm, 10 mm, 12 mm etc.

Product Type
Other, Nylon Tube

Rated Pressure
10-15 bar

Sealing Type
Compression seal

Section Shape
Other, Circular

Shape
Round

Standard
Other, ISO 9001

Surface Treatment
Other, Smooth Finish

Temperature Range
-40C to +110C

Tensile Strength
80 MPa

Thickness
1 mm to 3 mm (varies as per OD)

Thread Type
Non-threaded (for general tube)

Tolerance
0.1 mm

Usage
Pneumatic & hydraulic applications

Yield Strength
45 MPa

Know more

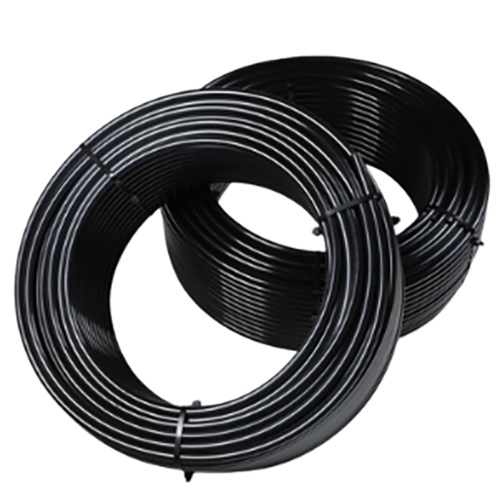

PA 12 Black

MOQ : 50 Rolls

Application
other, Automotive, Industrial Automation, Pneumatic Systems, Fuel Systems

Bend Radius
30 mm minimum

Coating Type
Uncoated

Color
Black

Connection
Other, Push Fit / Compression Fittings

Connection Type
Push-in / Compression

Diameter
Available from 4 mm to 16 mm

Flexibility
High Flexibility

Length
Standard 100 m / 200 m coil (custom lengths available)

Material
Other , Polyamide 12 (Nylon 12)

Material Grade
Industrial Grade PA12

Outer Diameter
4 mm to 16 mm (available in various sizes)

Product Type
Other, PA 12 Black Tube

Rated Pressure
16 bar

Sealing Type
Non-Sealing (Seals at fittings)

Section Shape
Other, Circular

Shape
Other, Round Coil

Standard
Other, DIN 73378 / DIN 74324

Surface Treatment
Other, Smooth Surface Finish

Temperature Range
-40C to +80C

Tensile Strength
>45 MPa

Thickness
1 mm to 2 mm (varies as per specification)

Tolerance
0.05 mm

Usage
Fluid Transfer, Pneumatics, Fuel Lines

Yield Strength
~33 MPa

Know more

Nylon Tube

MOQ : 100 Rolls

Application
other, Automotive, industrial, medical, food-grade, pneumatic tools

Bend Radius
As low as 20 mm, depending on tube size

Coating Type
None (natural finish)

Color
Red, Blue, Yellow, White, Black, Brown, Transparent, etc.

Connection
Other, Push fitting / Barbed / Compression

Connection Type
Quick connect / threaded / barbed

Diameter
Inner 2 mm to 14 mm (varies)

Flexibility
High

Length
10 m, 25 m, 50 m, 100 m coils or as required

Material
Other , Nylon (Polyamide)

Material Grade
Nylon 6 / Nylon 12

Outer Diameter
4 mm to 16 mm (Other sizes available on request)

Product Type
Other, Nylon Tube

Rated Pressure
10 bar to 30 bar (varies by size and grade)

Sealing Type
O-ring or direct seal

Section Shape
Other, Circular

Shape
Other, Round Tube

Standard
Other, ASTM / ISO / DIN (Varies by manufacturer)

Surface Treatment
Other, Smooth Finish

Temperature Range
-40C to +90C

Tensile Strength
>180 MPa

Thickness
0.5 mm - 3 mm (customizable)

Thread Type
N/A (mainly push-fit or barbed connections)

Tolerance
0.1 mm

Usage
Fluid transfer, pneumatics, air lines, hydraulic systems

Yield Strength
>50 MPa

Know more

We deal only in bulk orders.
